ClickFit Evo Steel Roof

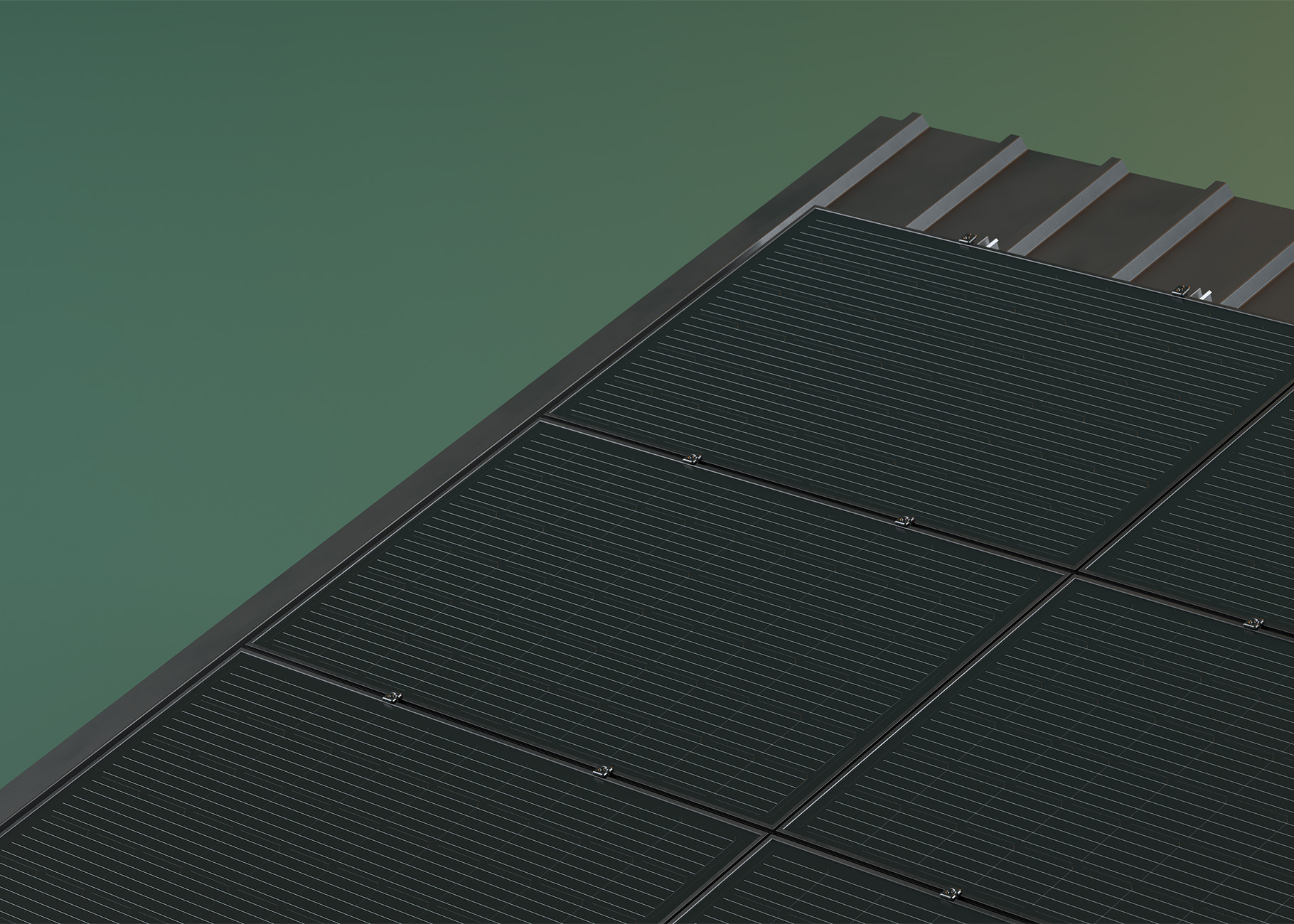

Installing solar panels just got smarter with ClickFit Evo® for steel roofs. With minimal base components and a single tool, you’re in for a quick, easy, and safe installation.

One system, endless possibilities: ClickFit Evo fits all types of steel roofs, including trapezoidal and corrugated steel roofs using the same base components.

Contact our sales team

Where to buy?

Ready to get started with this mounting system? Our systems are available through our distribution partners.

Do you have a question about large-scale projects, for example in combination with our flat-roof system Wave? Get in touch with our sales team.

Find channel partners

Features

Flexible mounting options

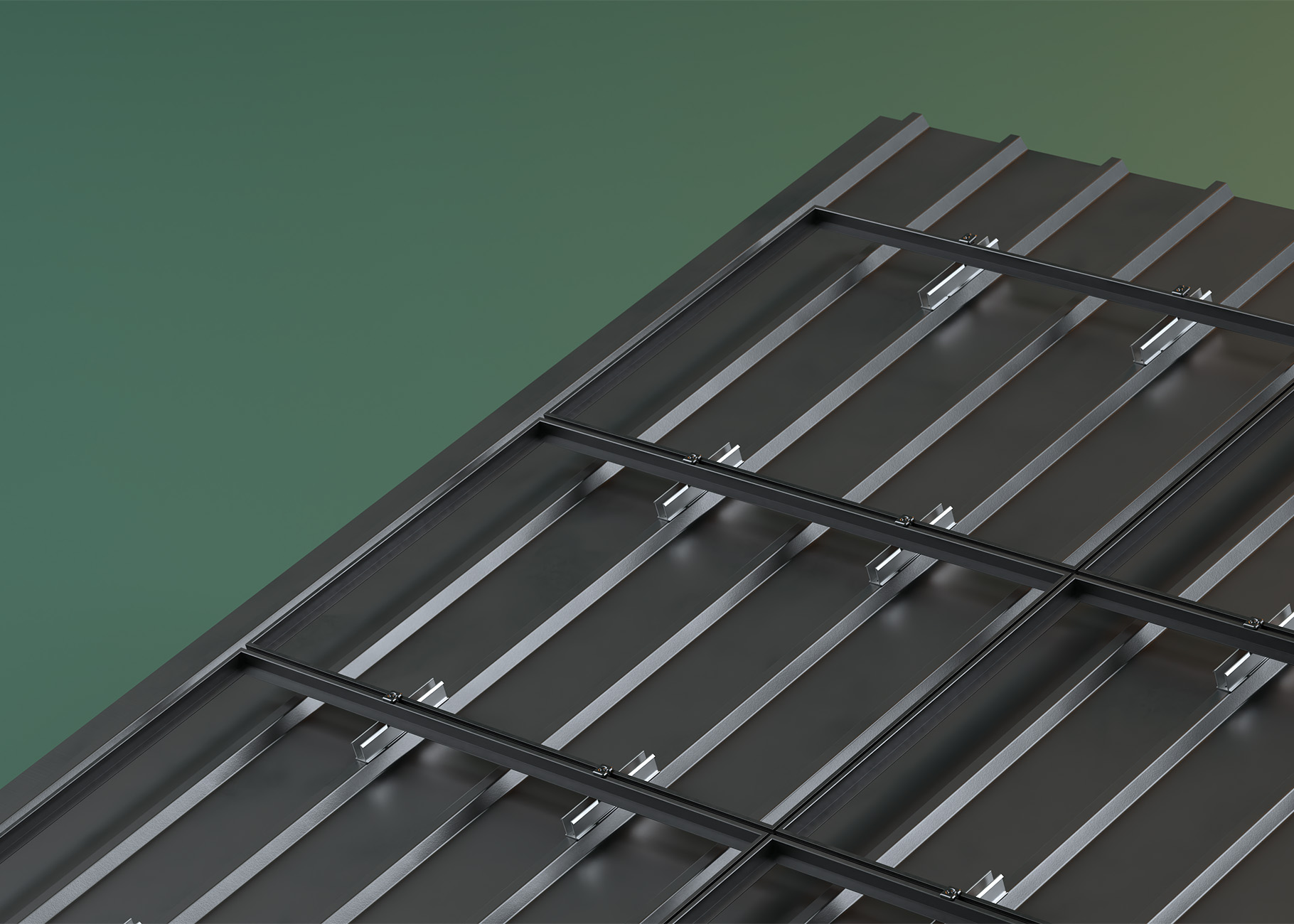

The ClickFit Evo Mounting Profiles come with pre-punched holes and are installed using self-tapping screws. This method offers the fastest installation on trapezoidal, sandwhich and corrugated steel roofs. For other types of steel roofs, we recommend using the ClickFit Evo Hanger Bolt solution.

Portrait and landscape

The system offers mounting profiles for both landscape and for portrait installations. You can also choose between low profiles, for a sleek appearance, or high profiles to accommodate larger optimizers and inverters.

Strong and durable

ClickFit Evo is made from high-quality aluminium and Magnelis steel. This type of steel has a longer lifetime, is resistant to corrosion and has a self-repairing coating. So you can be sure you are working with high-quality products.

Minimal base components

The ClickFit Evo mounting system for pitched roofs consists of minimal base components. This makes installation extra easy.

System variations

Only 4 components are required for simple, easy and fast installation thanks to the smart click connection. Drilling into the roof structure isn’t needed with the Universal Roof Hook. You will save on tools, actions and time. If you prefer screws, then choose the Truss Hook or Roof Hook Pro.

Strong Magnelis steel hook system
Fits a wide range of roof attachments
Lightweight and strong rail
Integrated cable management
MCS certified

Compatible with existing and new roofs, streamlined and often tailored for the agricultural sector. Watertightness and even load distribution are ensured and roof irregularities are compensated up to 10 degrees.

Only 4 components needed, 1 tool approach
Additional end cap for an aesthetically pleasing finish
Adjustable in height due to unique design
Integrated cable management
MCS certified

This straightforward system consists of just four components and can be installed on both existing and new roofs. The preassembled hanger bolt and the unique universal properties of this system let you install solar panels quickly and easily on pitched roofs.

Suitable for multiple pitched rooftops
Only 4 components, 1 tool approach
Can be installed on EPDM and Bitumen Roof membrane
Landscape & portrait placement
Compensates for roof irregularities up to 10 degrees

Installing solar panels just got smarter with ClickFit Evo® for Rosemary tiled roofs. With only 4 base components and a single tool, you’re in for a quick, easy, and safe installation. One system, endless possibilities: ClickFit Evo fits all common pitched roofs using the same base components. For you, this means working more efficiently, with less fuss.

ClickFit Evo for standing seam roofs is suitable for single- or double folded, snap and rounded seams thanks to three types of clamps. The pre-assembled with a self-aligning click connection allow quick and easy installation of the mounting rail.

Installing solar panels just got smarter with ClickFit Evo® for slate roofs. With only 4 base components and a single tool, you’re in for a quick, easy, and safe installation. One system, endless possibilities: ClickFit Evo fits all common pitched roofs using the same base components. For you, this means working more efficiently, with less fuss.

System components

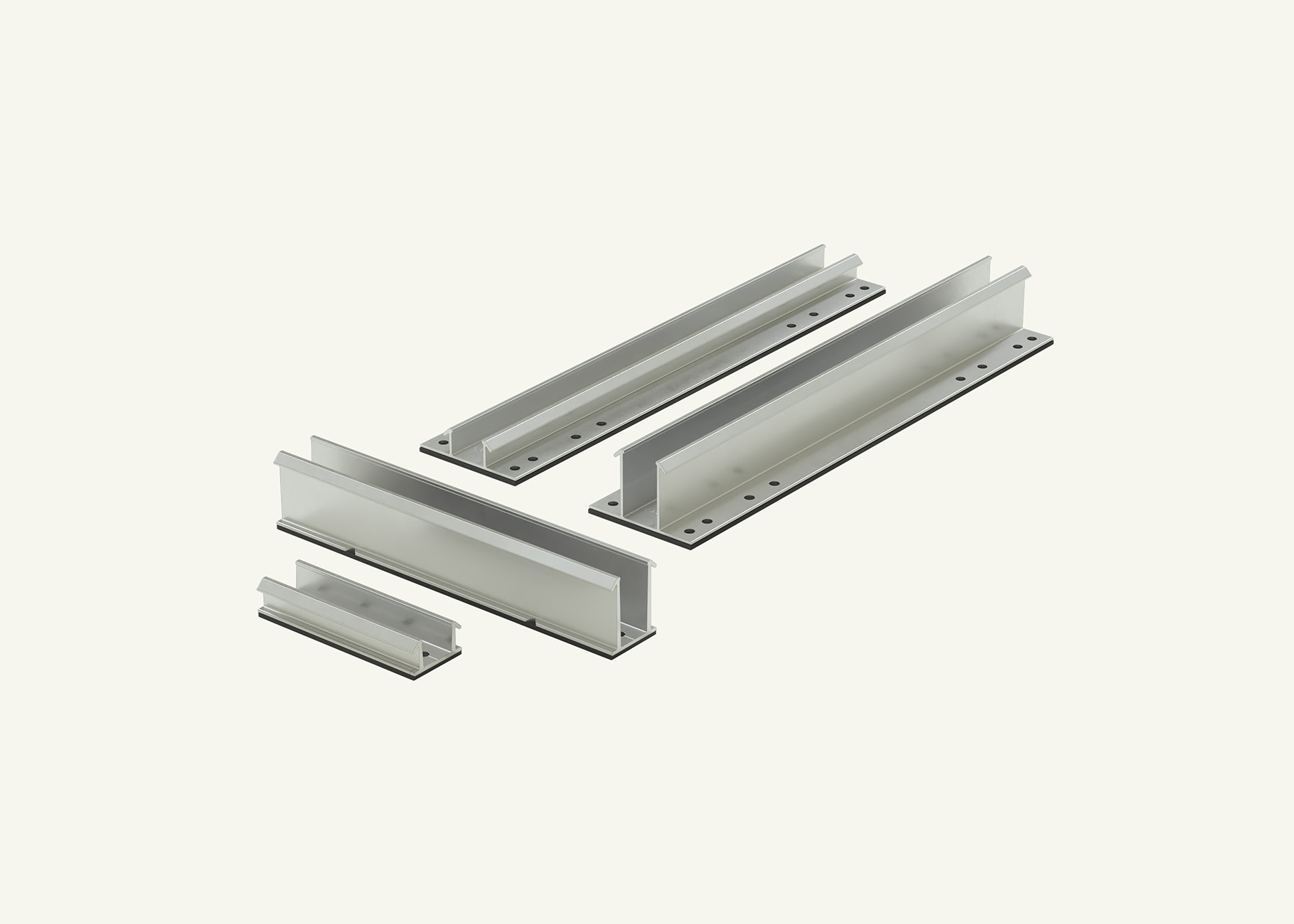

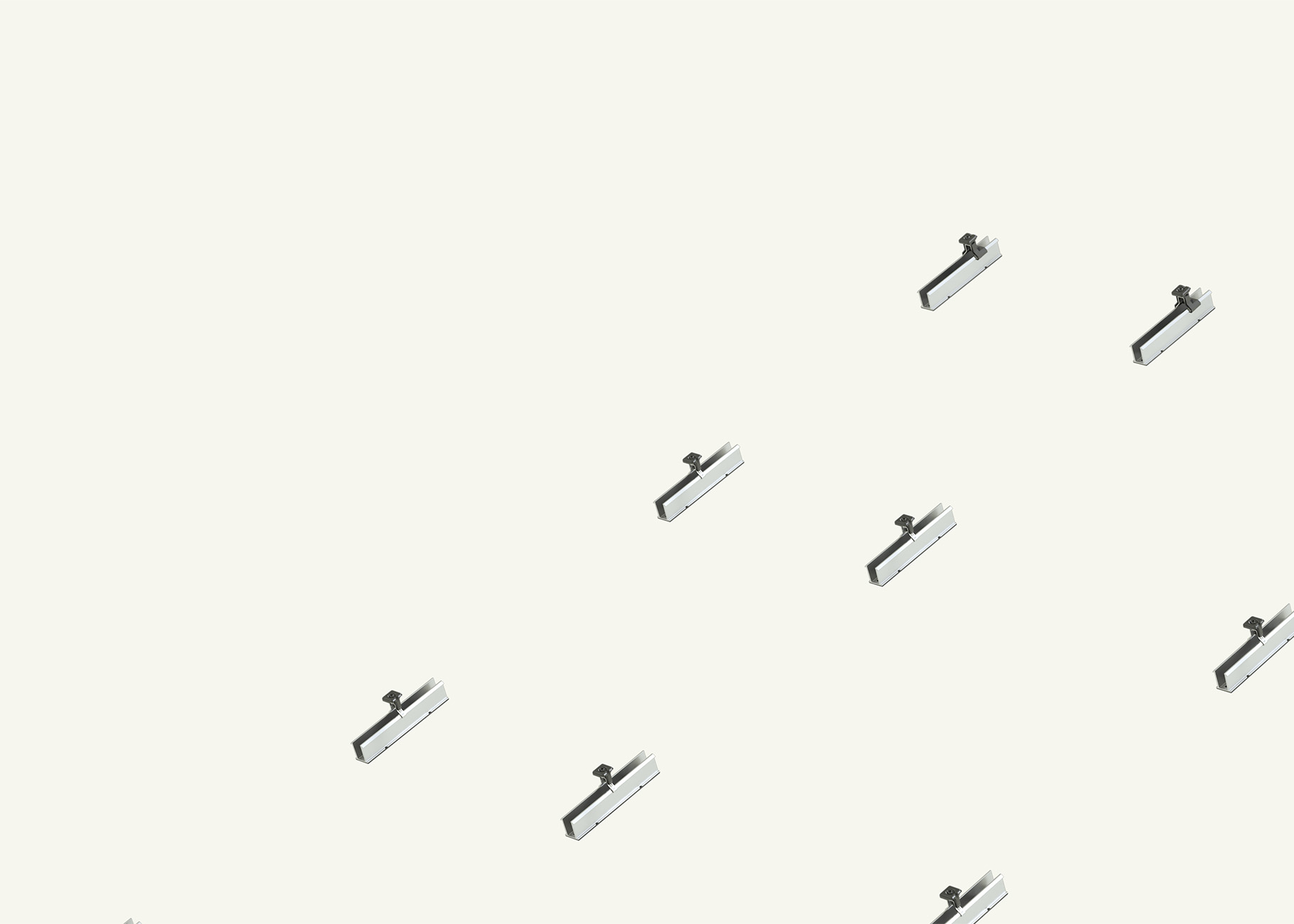

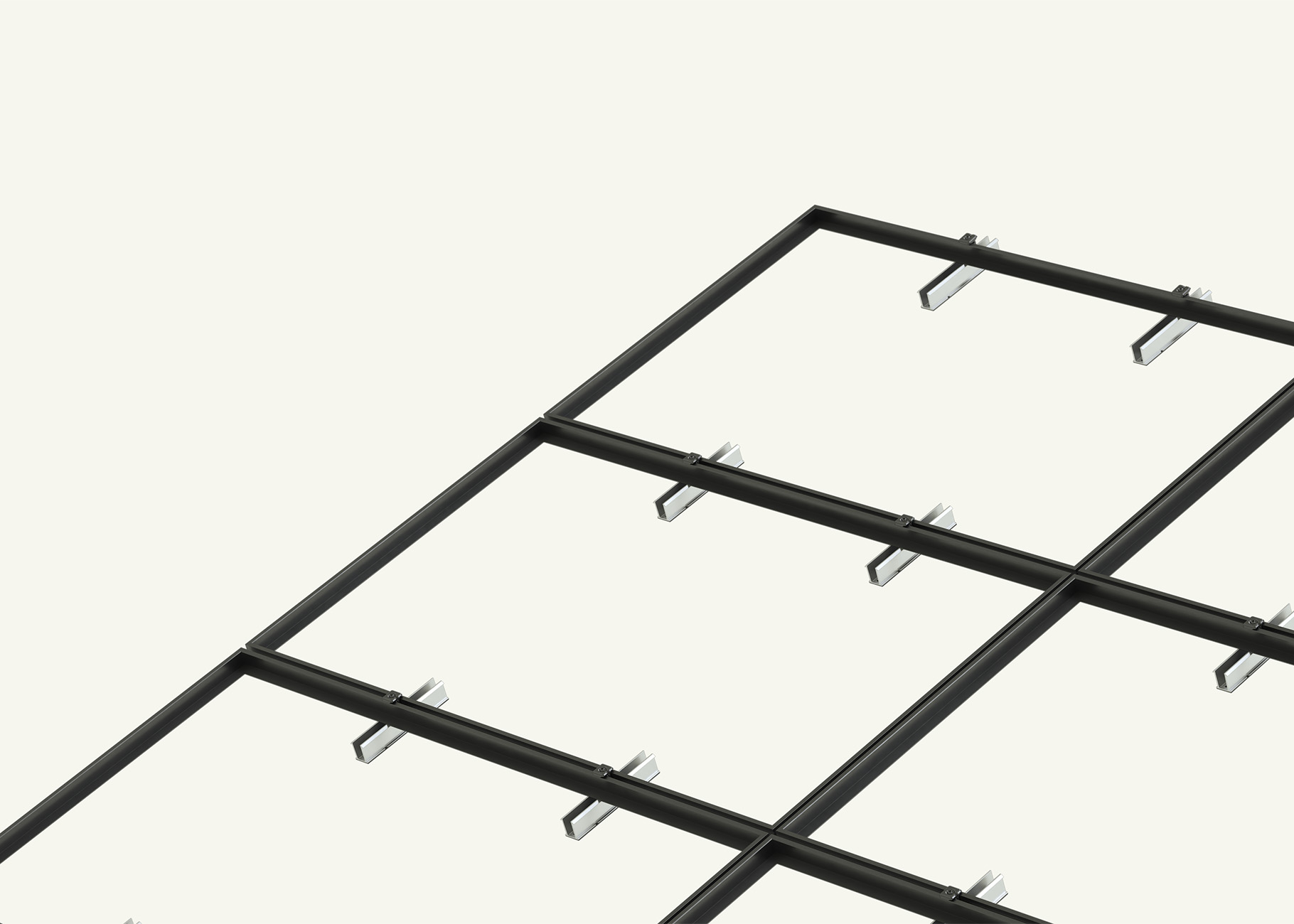

Mounting profile The mounting profiles feature pre-punched holes and a pre-applied EPDM rubber seal, ensuring a watertight finish. Use the mounting profiles on trapezoidal and corrugated steel roofs.

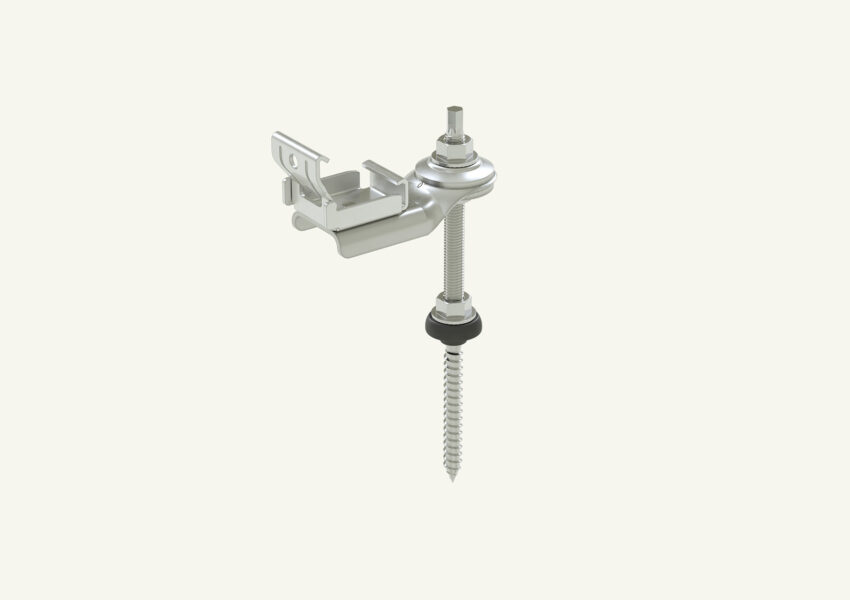

Hanger Bolt For other steel roof types, the hanger bolt with click connection is the ideal choice. Simply install the hanger bolt and continue with familiar ClickFit Evo components.

Module clamp The universal module clamp is suitable for solar modules with a frame thickness between 30 and 50 mm. The clamp works as both a middle and end clamp.

End cap The end caps provide a stylish and windproof finish. They are available with and without clamp support in grey and black.

Accessories, clamps and screws Complete your solar project with optional accessories like the adapter profile for corrugated steel roof. For solar panels that require a wider module clamp, use the ClickFit Evo 60mm mid and end clamp.

Specifications & downloads

Roof pitch	2-60º
Roof type	Only trapezioal/corrugated
Roof material thickness	0,5 – 2mm
Short side clamping	✓
Long side clamping	✓
Portrait set-up	✓
Landscape set-up	✓
Max panel surface area	3,92 m2
Integrated cable management	✓
Max length of continuous rail	N/A
Mounting method	Screwing
Anchoring	Roof plate
Material	Aluminium

Roof pitch	2-60º
Roof type	All steel roofs
Roof material thickness	N/A
Short side clamping	✓
Long side clamping	✓
Portrait set-up	✓
Landscape set-up	✓
Max panel surface area	3,92 m2
Integrated cable management	✓
Max length of continuous rail	15m
Mounting method	Screwing
Anchoring	Purlins/Rafter
Material	Magnelis® steel
