ClickFit Evo Rosemary Tiled Roof

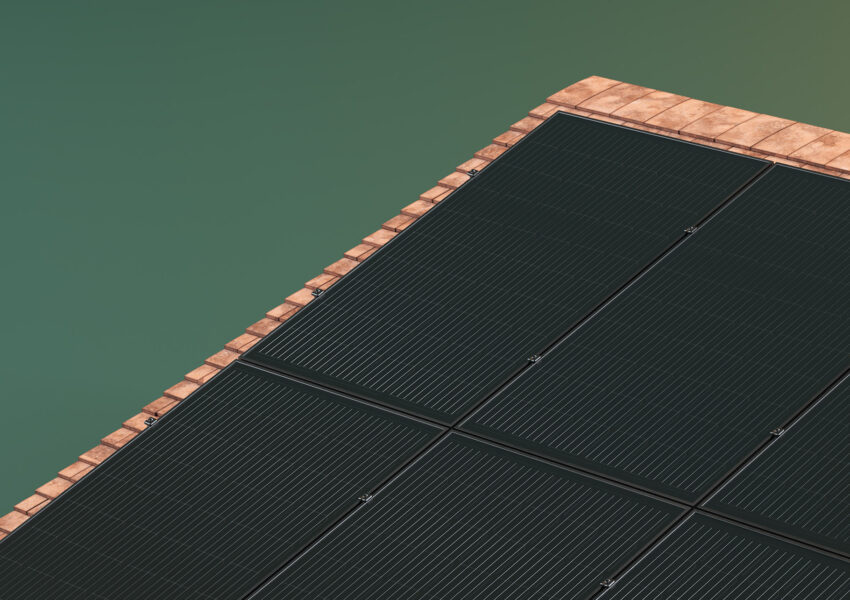

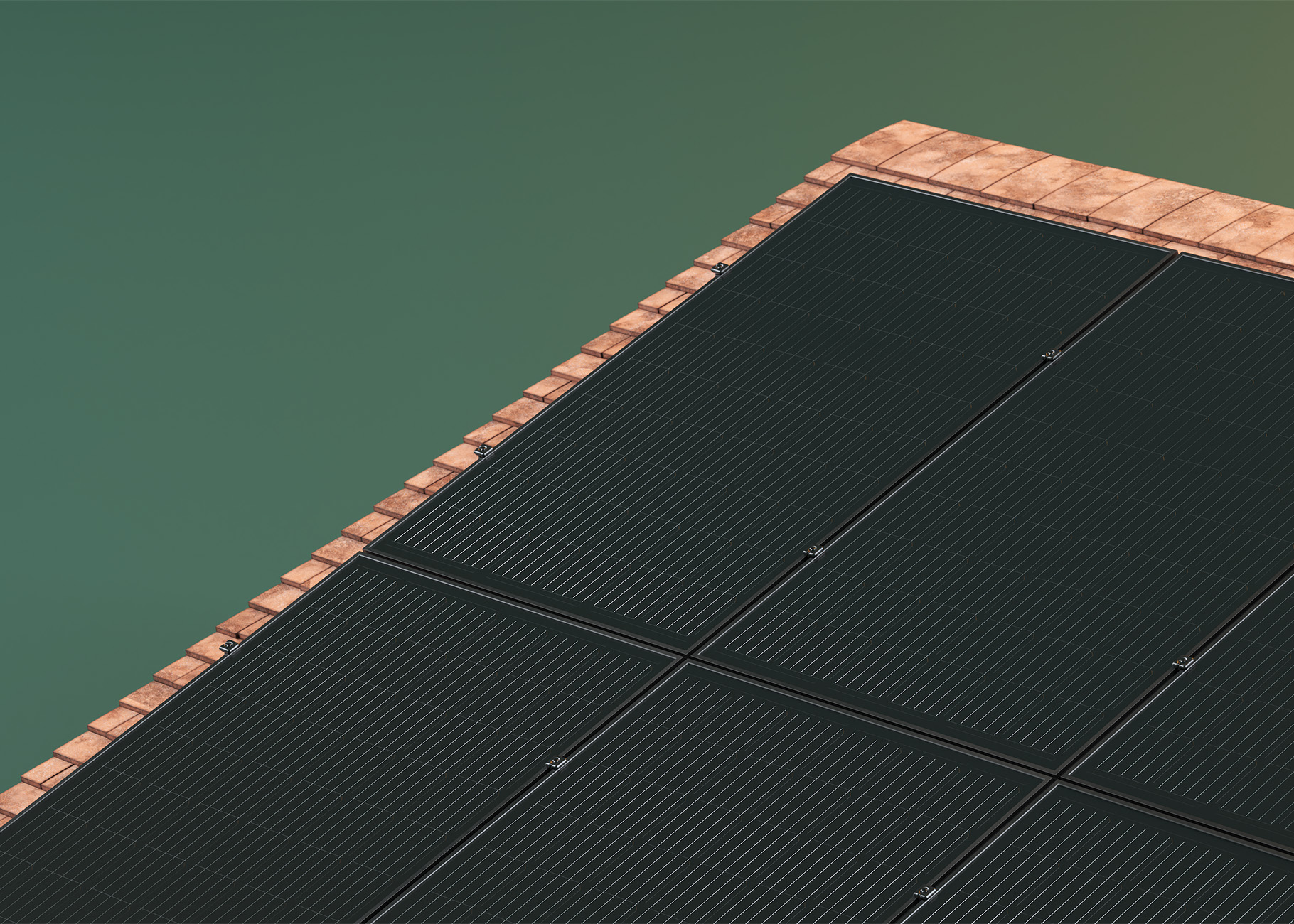

Installing solar panels just got smarter with ClickFit Evo® for Rosemary tiled roofs. With only 4 base components and a single tool, you’re in for a quick, easy, and safe installation.

One system, endless possibilities: ClickFit Evo fits all common pitched roofs using the same base components. For you, this means working more efficiently, with less fuss.

Contact our sales team

Where to buy?

Ready to get started with this mounting system? Our systems are available through our distribution partners.

Do you have a question about large-scale projects, for example in combination with our flat-roof system Wave? Get in touch with our sales team.

Find channel partners

Features

Patented click connection

ClickFit Evo comes preassembled with a self-aligning click connection. This allows for quick and easy installation of the mounting rail.

No pressure on roof tiles

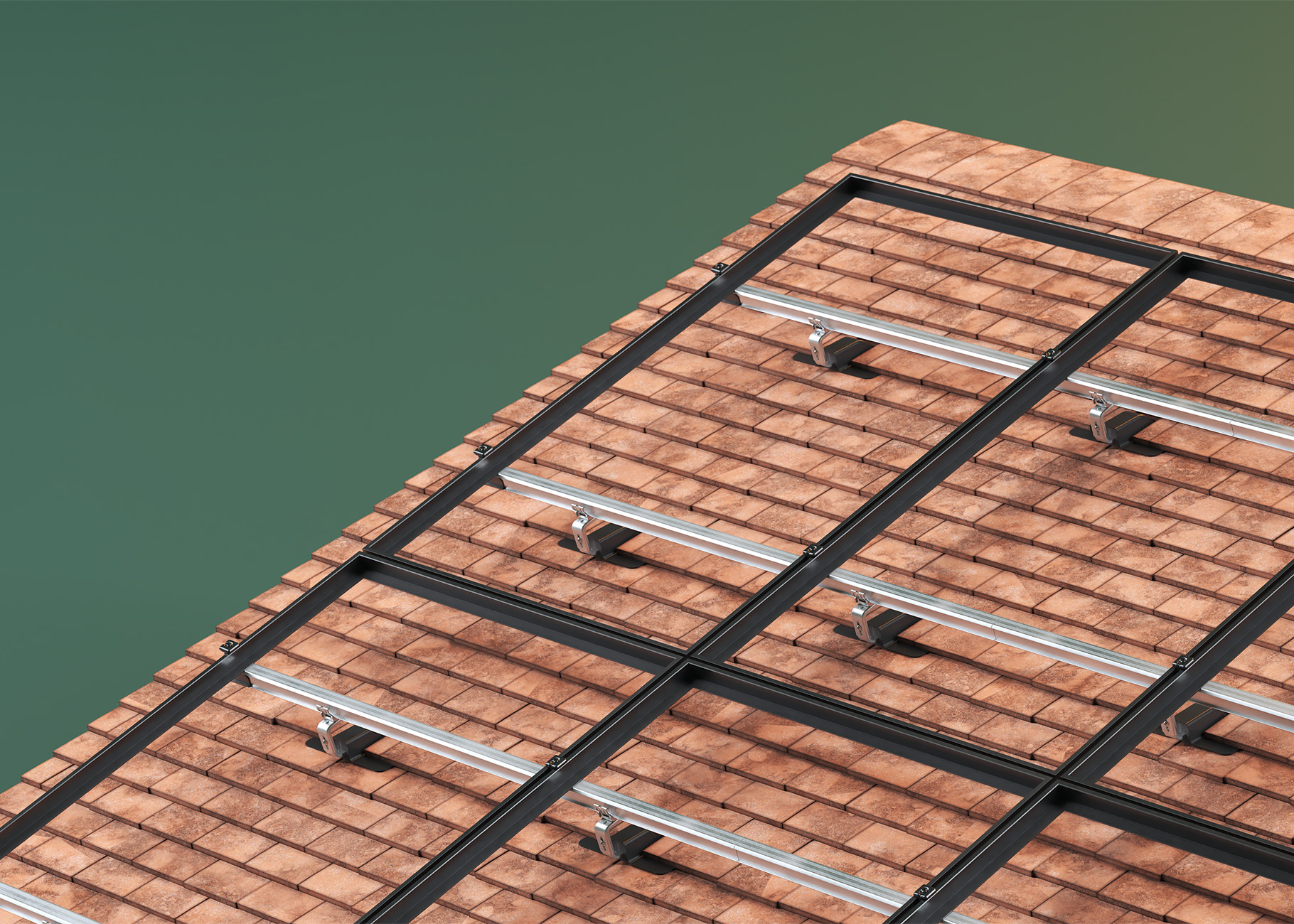

The hook will be screwed on the rafters. This results in a strong mounting system which hovers above the tiles and minimises the risk of breaking tiles.

Neat and watertight roof integration

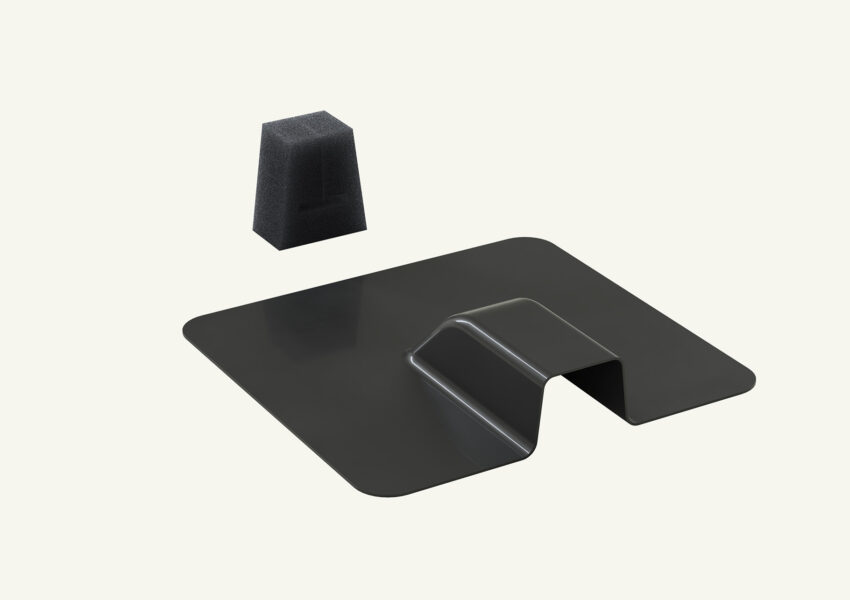

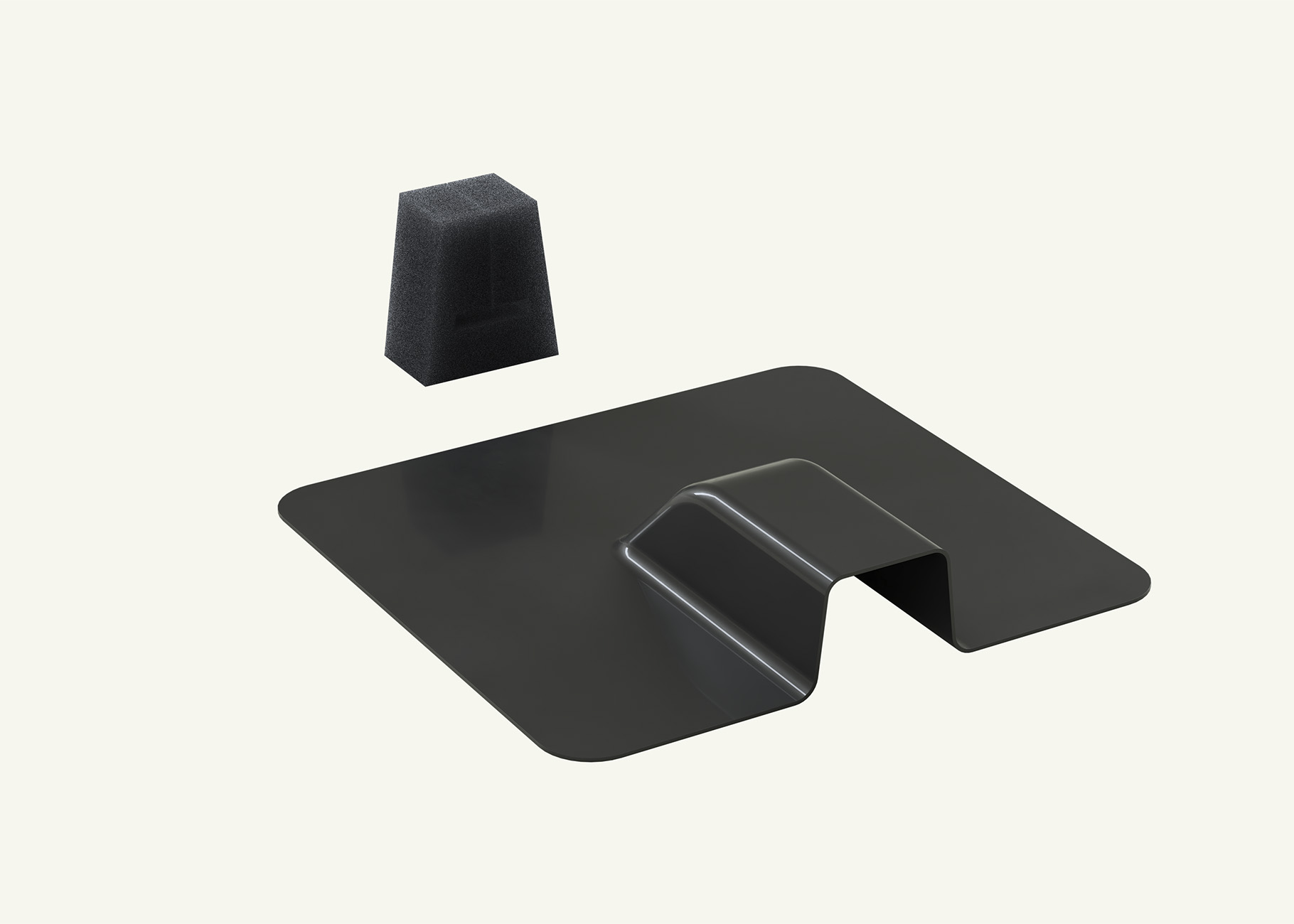

The ClickFit Evo Rosemary hook provides a neat and watertight solution in combination with flashings.

MCS certified

Installing solar panels with ClickFit Evo is a reliable and safe choice, proven by its MCS certification. This means the mounting system is compliant with the highest standards and quality requirements.

System variations

Only 4 components are required for simple, easy and fast installation thanks to the smart click connection. Drilling into the roof structure isn’t needed with the Universal Roof Hook. You will save on tools, actions and time. If you prefer screws, then choose the Truss Hook or Roof Hook Pro.

Strong Magnelis steel hook system
Fits a wide range of roof attachments
Lightweight and strong rail
Integrated cable management
MCS certified

Compatible with existing and new roofs, streamlined and often tailored for the agricultural sector. Watertightness and even load distribution are ensured and roof irregularities are compensated up to 10 degrees.

Only 4 components needed, 1 tool approach
Additional end cap for an aesthetically pleasing finish
Adjustable in height due to unique design
Integrated cable management
MCS certified

This straightforward system consists of just four components and can be installed on both existing and new roofs. The preassembled hanger bolt and the unique universal properties of this system let you install solar panels quickly and easily on pitched roofs.

Suitable for multiple pitched rooftops
Only 4 components, 1 tool approach
Can be installed on EPDM and Bitumen Roof membrane
Landscape & portrait placement
Compensates for roof irregularities up to 10 degrees

Installing solar panels just got smarter with ClickFit Evo® for slate roofs. With only 4 base components and a single tool, you’re in for a quick, easy, and safe installation. One system, endless possibilities: ClickFit Evo fits all common pitched roofs using the same base components. For you, this means working more efficiently, with less fuss.

ClickFit Evo for standing seam roofs is suitable for single- or double folded, snap and rounded seams thanks to three types of clamps. The pre-assembled with a self-aligning click connection allow quick and easy installation of the mounting rail.

Smart mounting solution for all types of steel roofs. The profiles feature pre-punched holes and pre-applied EPDM rubber seals and are mounted directly onto the roof using self-tapping screws. The Hanger Bolt easily compensates for roof irregularities of up to 10 degrees.

No pre-drilling required
Pre-taped EPDM rubbers
Additional end cap for an aesthetically pleasing finish
Choice of high/low profiles or the hanger bolt
For landscape and portrait orientation

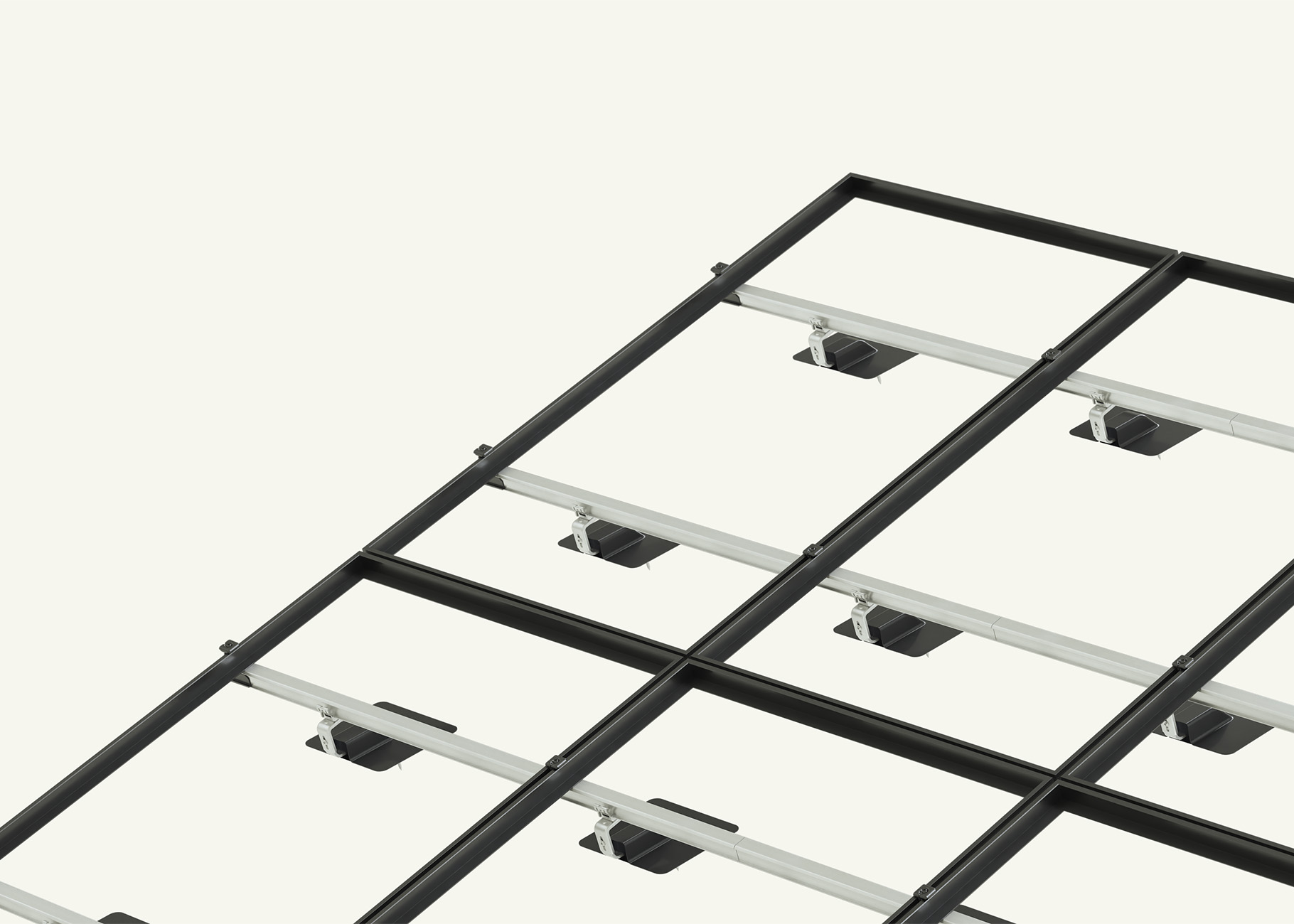

System components

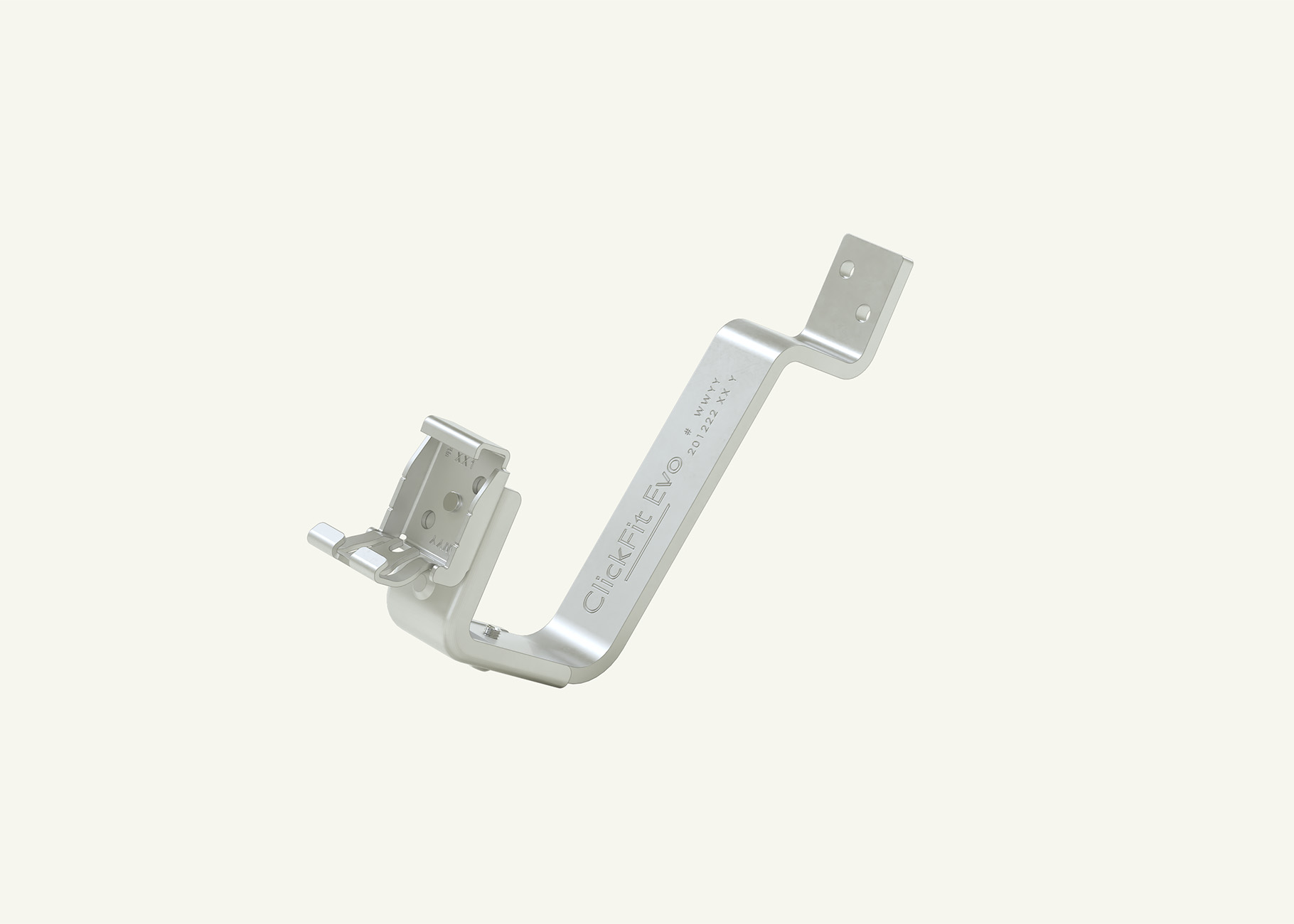

Rosemary Hook The Rosemary hook hovers above the tiles, reducing the risk of damage to the tiles. By applying flashings, the Rosemary hook provides a watertight solution.

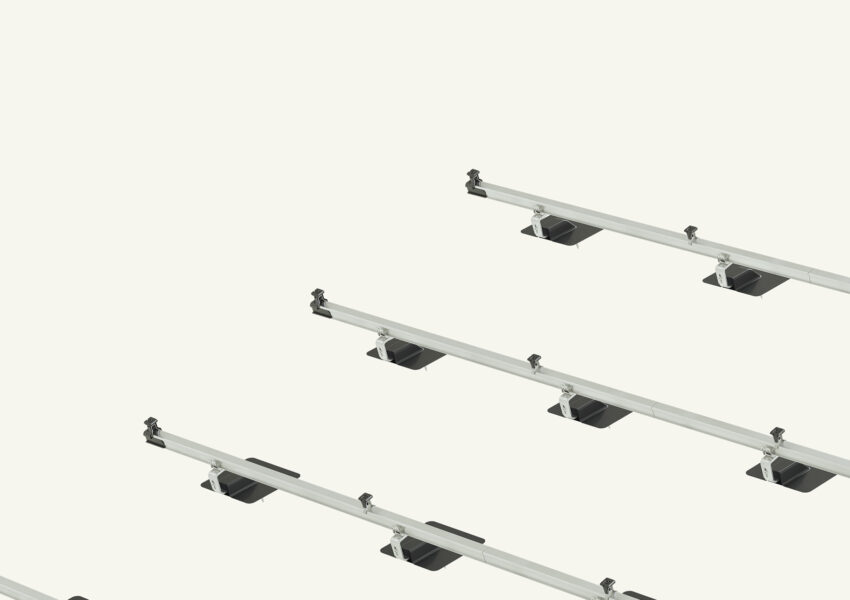

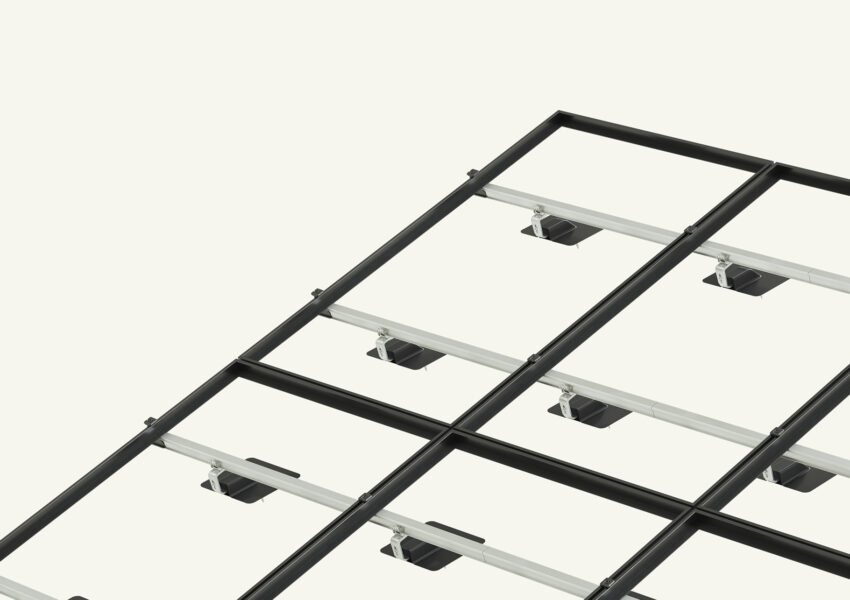

Mounting rail Universal mounting rail compatible with the entire ClickFit Evo range. Quick and easy installation with a simple click, no need for screws.

Module clamp The universal module clamp is suitable for solar modules with a frame thickness between 30 and 50 mm. The clamp works as both a middle and end clamp.

End cap

Accessories, clamps and screws Complete your solar project with optional accessories like the optimizer clip with cable management features. For solar panels that require a wider module clamp, use the ClickFit Evo 60mm mid and end clamp.

Specifications & downloads

Roof pitch	30-60º
Short side clamping	✓
Long side clamping	✓
Portrait set-up	✓
Landscape set-up	✓
Max panel surface area	3,92 m2
Integrated cable management	✓
Max length of continuous rail	15m
Mounting method	Screwing
Max tile overlap	130mm
Material	Magnelis® steel
