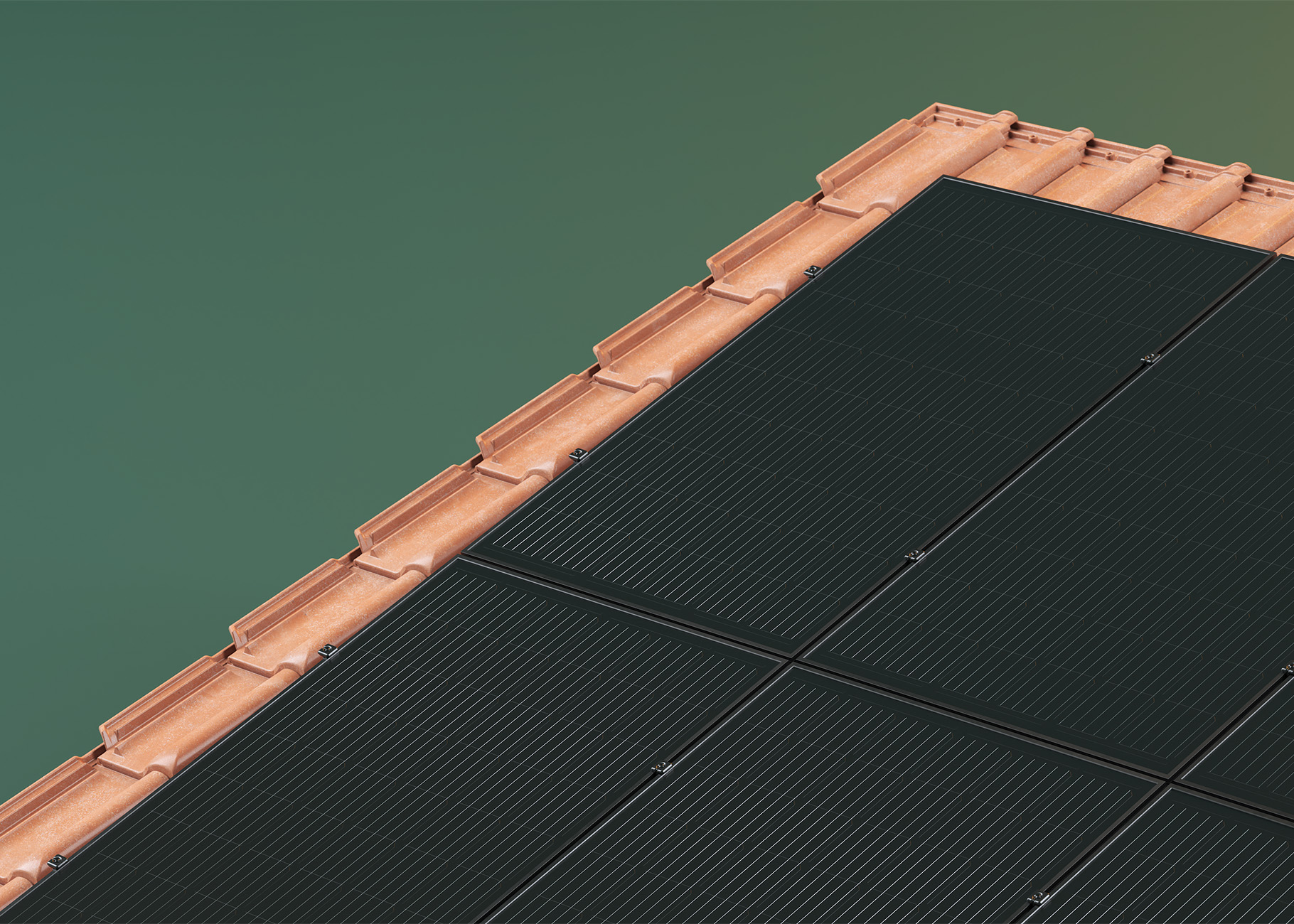

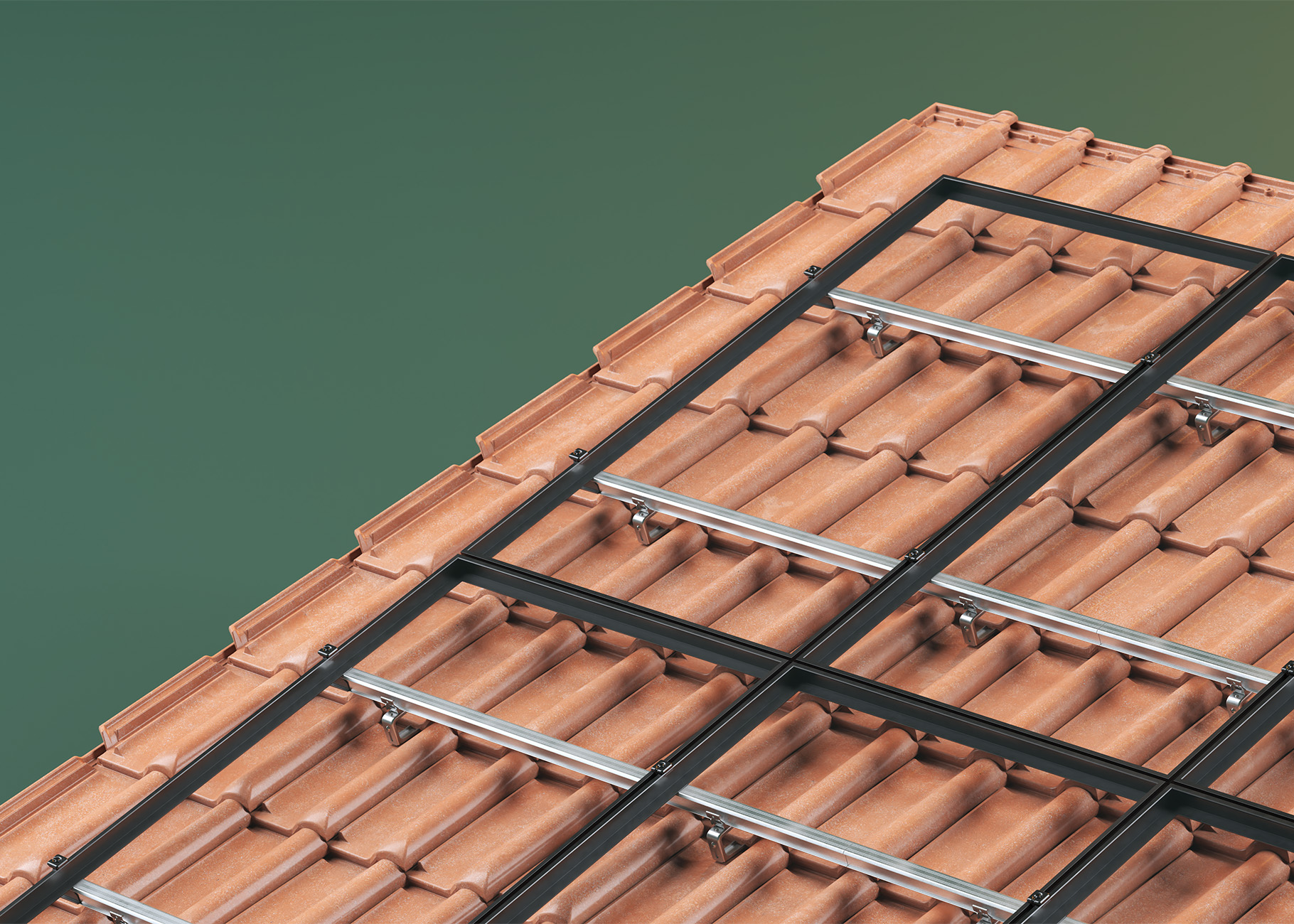

ClickFit Evo Tiled Roof
One system, endless possibilities: ClickFit Evo fits all common pitched roofs using the same base components. For you, this means working more efficiently, with less fuss.
Interested in purchasing this system? Available from our channelpartners in: Netherlands, Belgium, France, Germany, UK, Sweden.
Features
Flexible mounting options

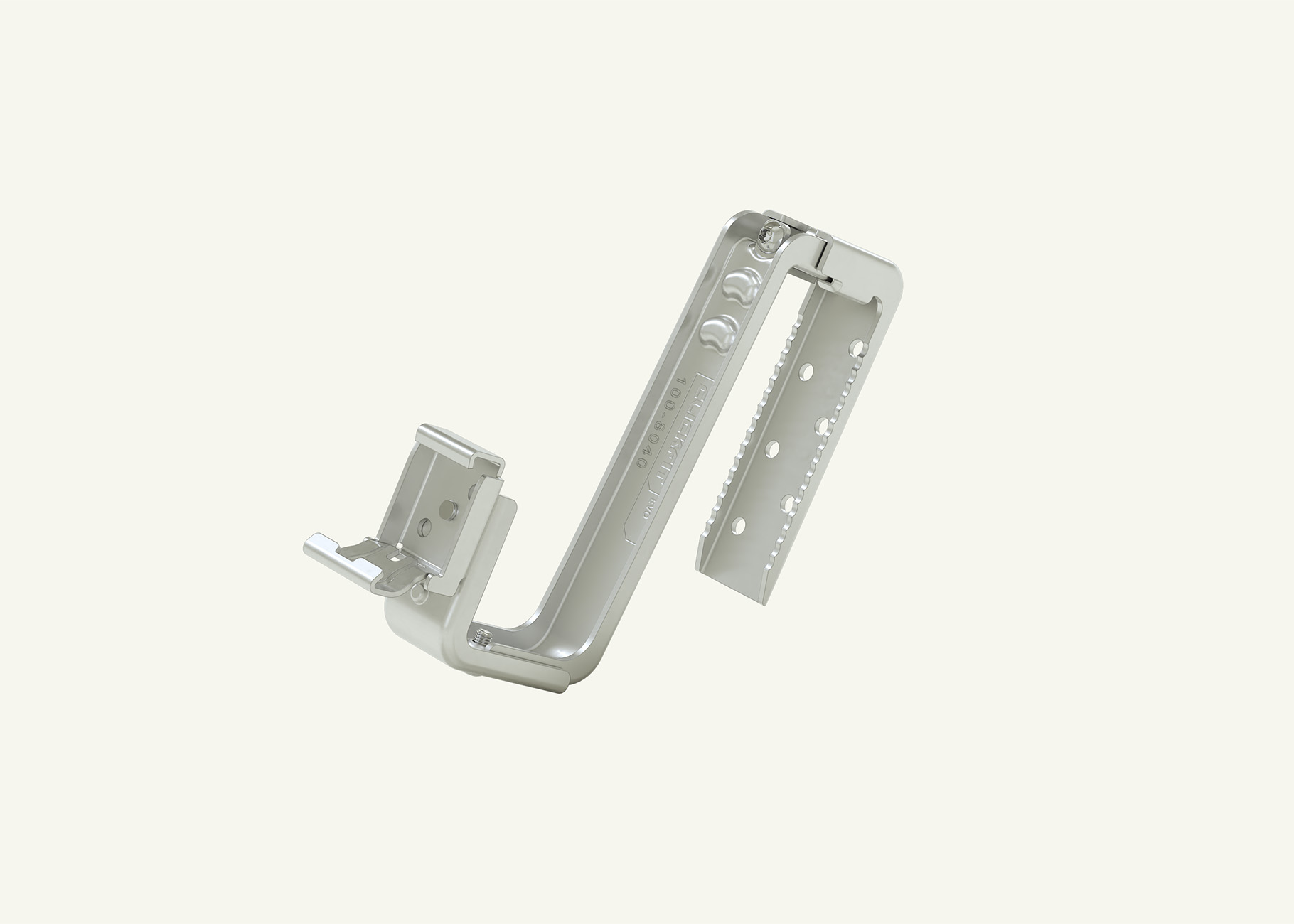

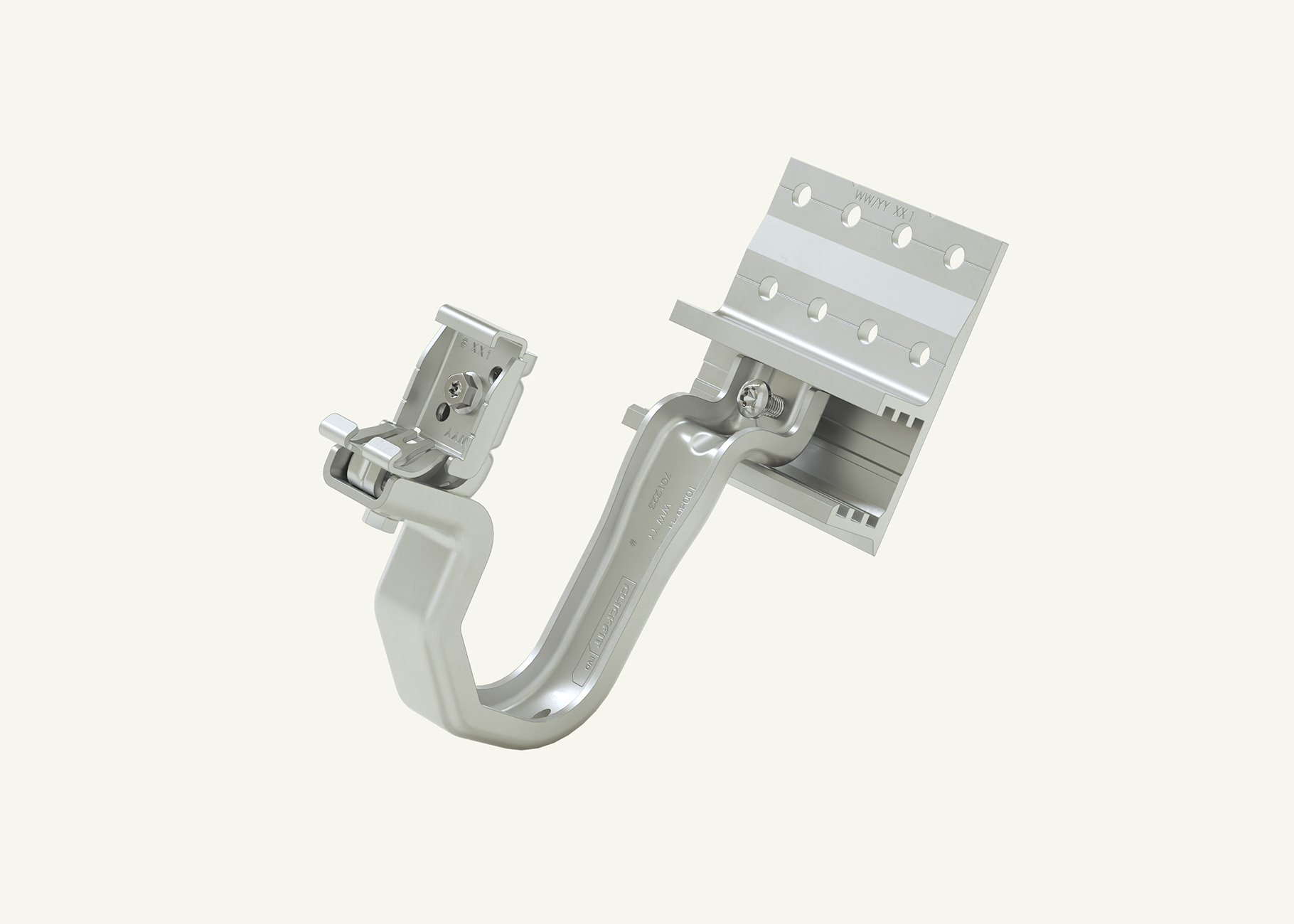

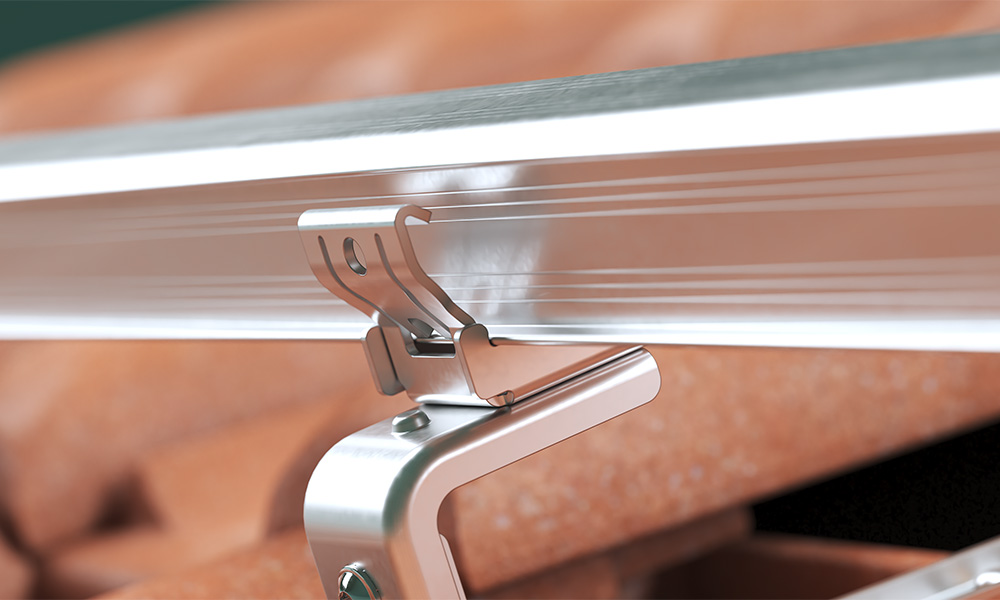

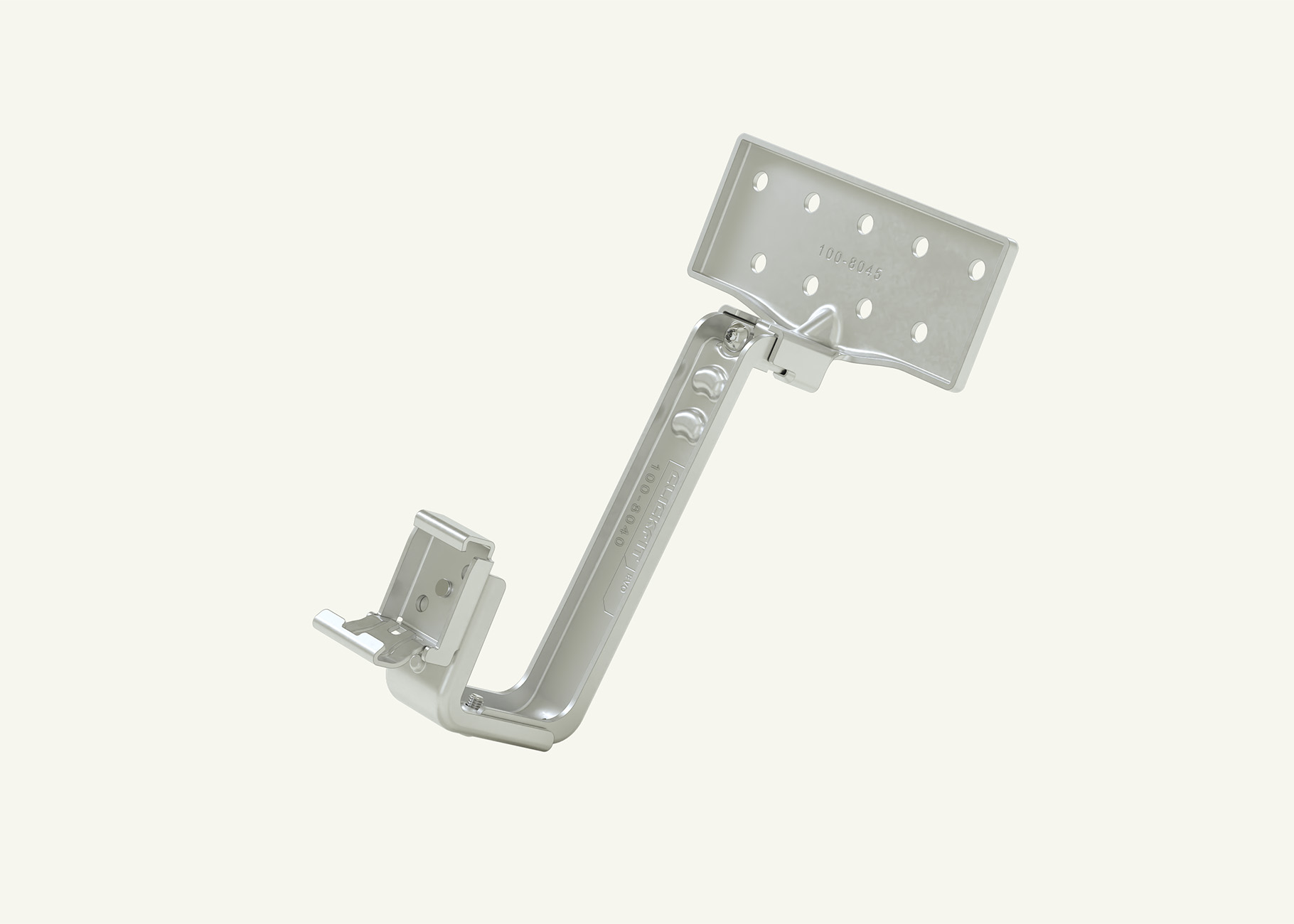

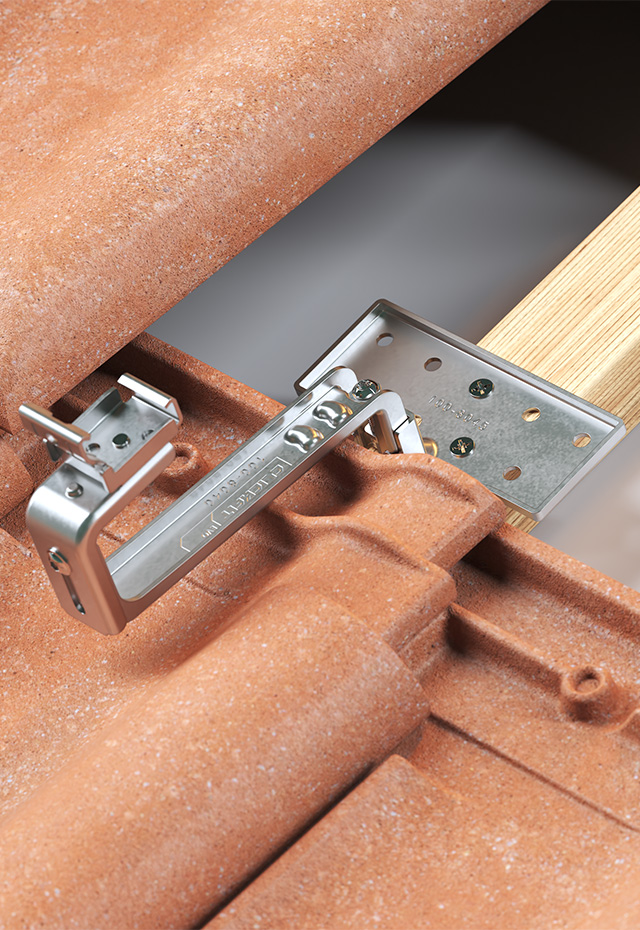

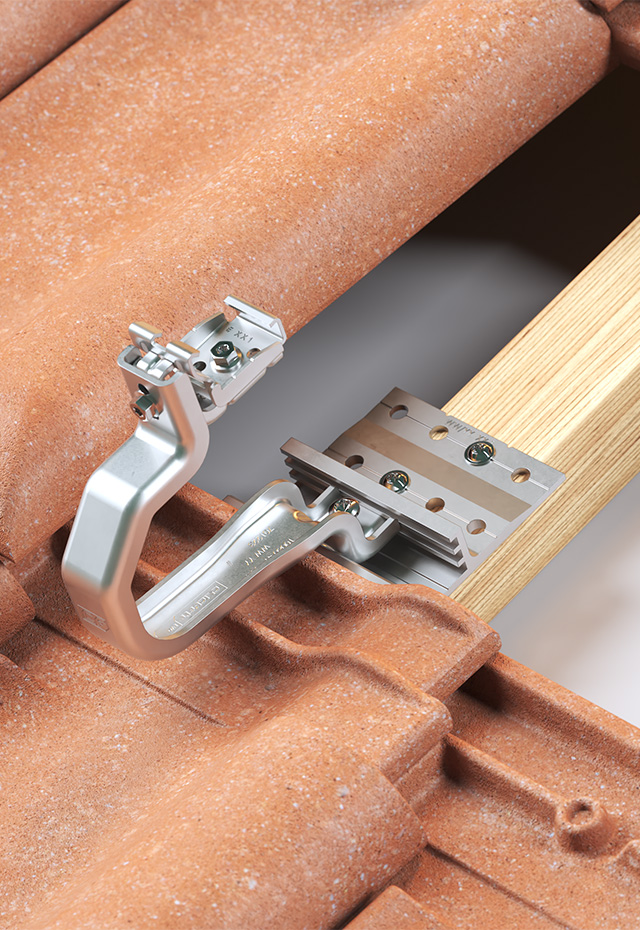

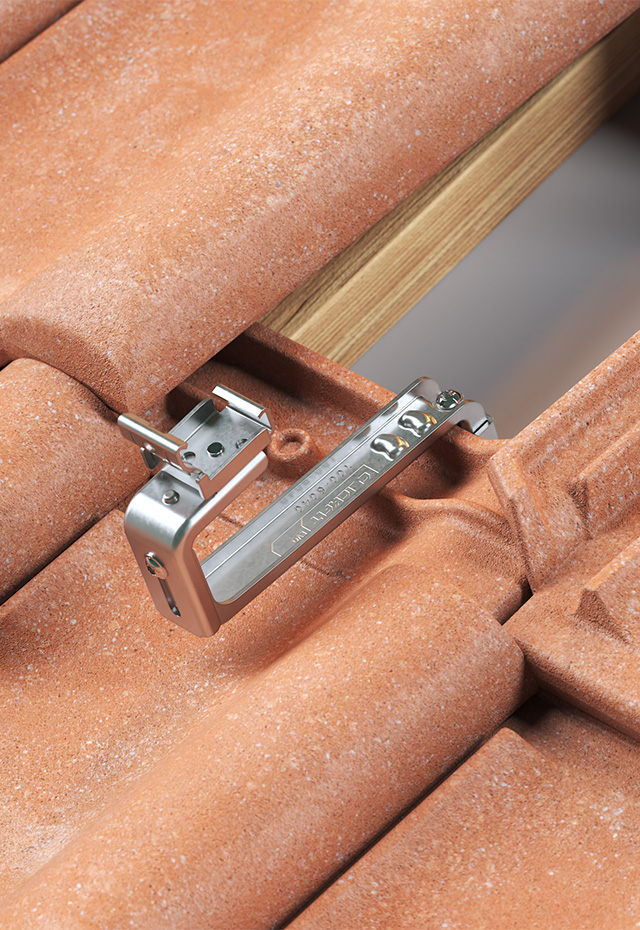

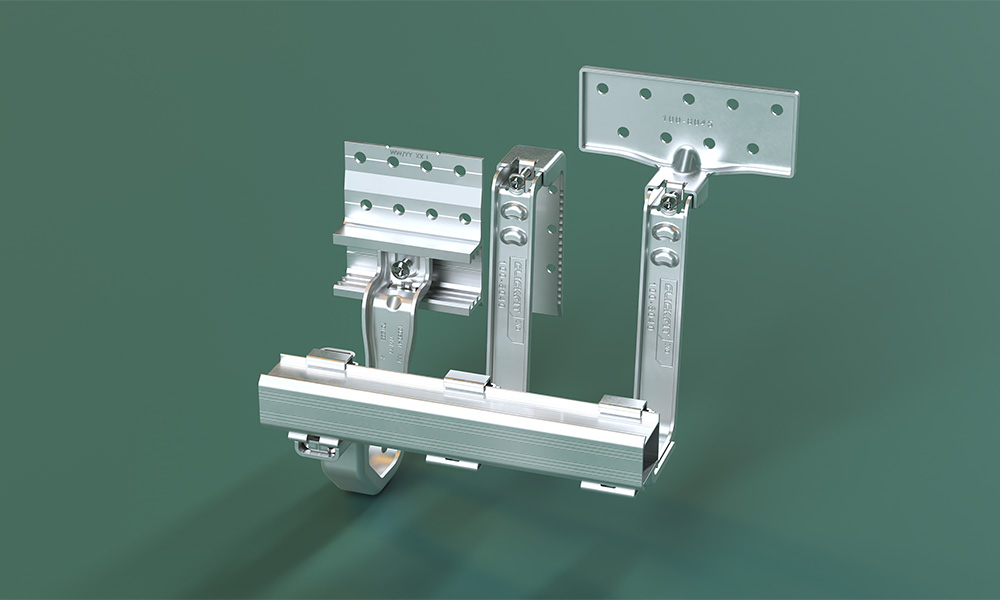

ClickFit Evo Tiled Roof offers 3 different Roof Hooks to chose from. The Universal Roof Hook comes with a smart hook-and-click system and eliminates the need to drill into the roof structure. Simply hook the roof hook onto the batten. Prefer screwing onto the roof structure? Use the Truss Hook. For extra strength use the Roof Hook Pro, it withstands higher snow and wind loads.

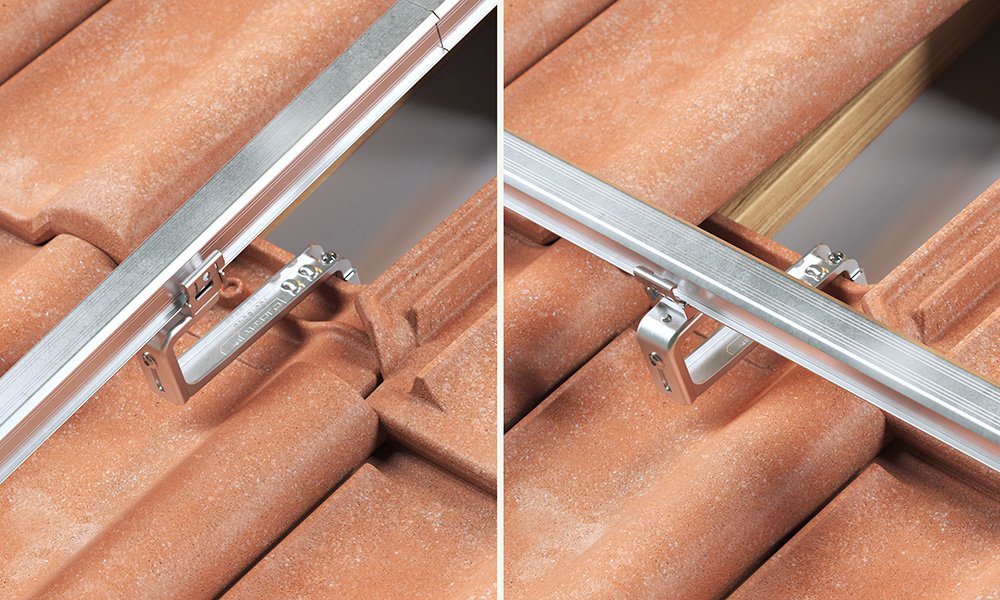

Portrait and landscape
Thanks to the clever design of the rotatable click connection, solar panels can be installed in both landscape and portrait orientation.
MCS certified
Installing solar panels with ClickFit Evo Universal Roof Hook is a reliable and safe choice, proven by its MCS certification. This means the mounting system is compliant with the highest standards and quality requirements.

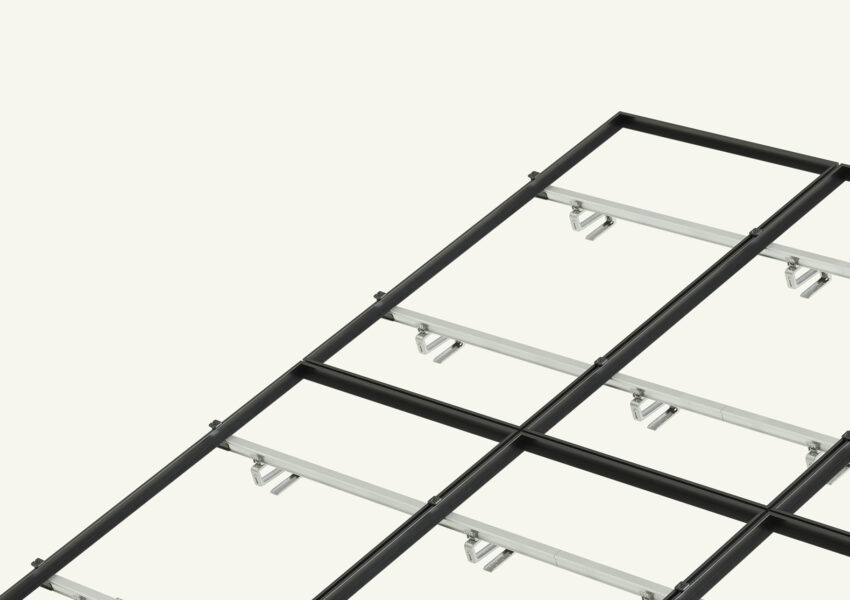

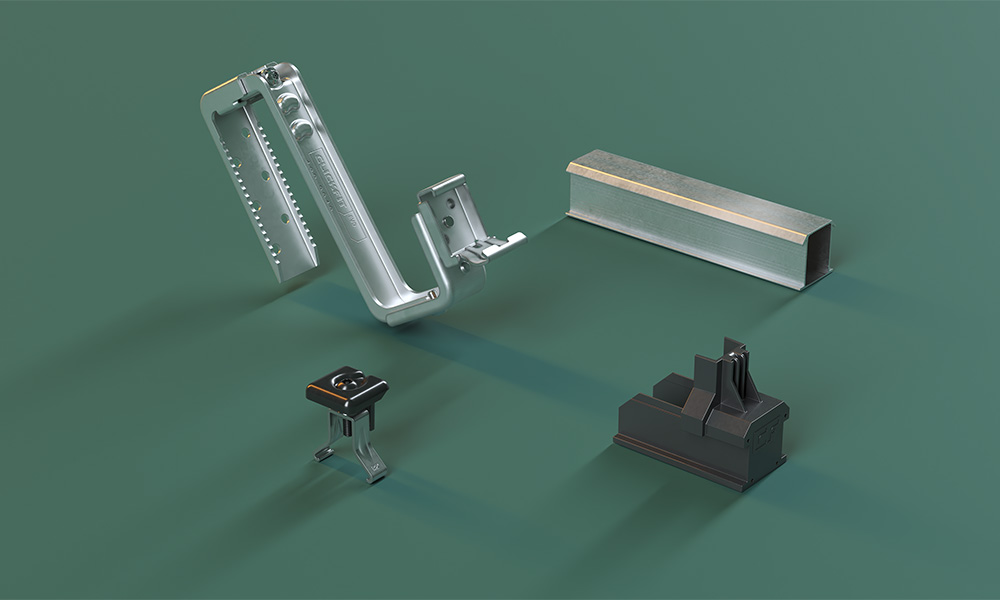

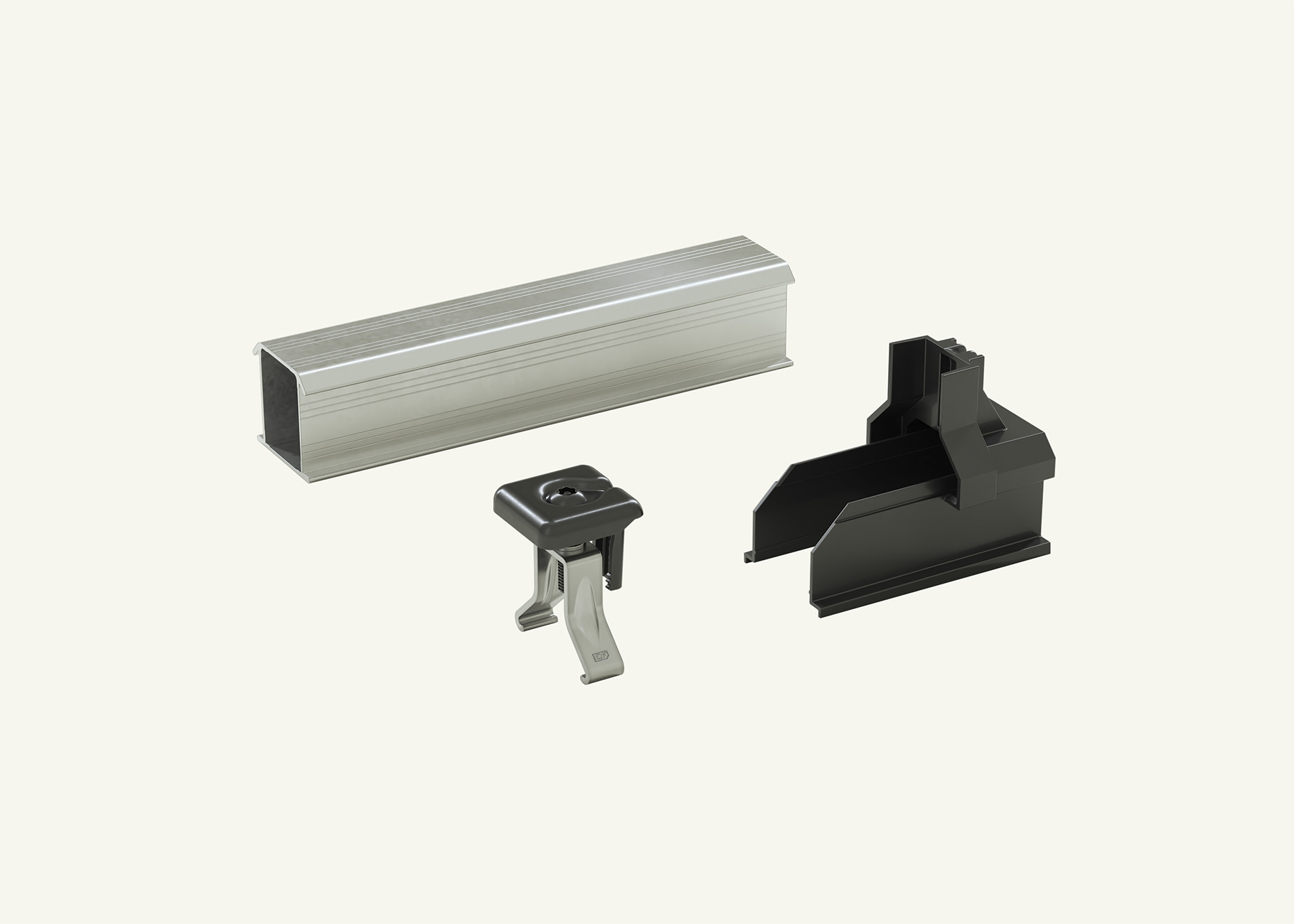

Only 4 base components

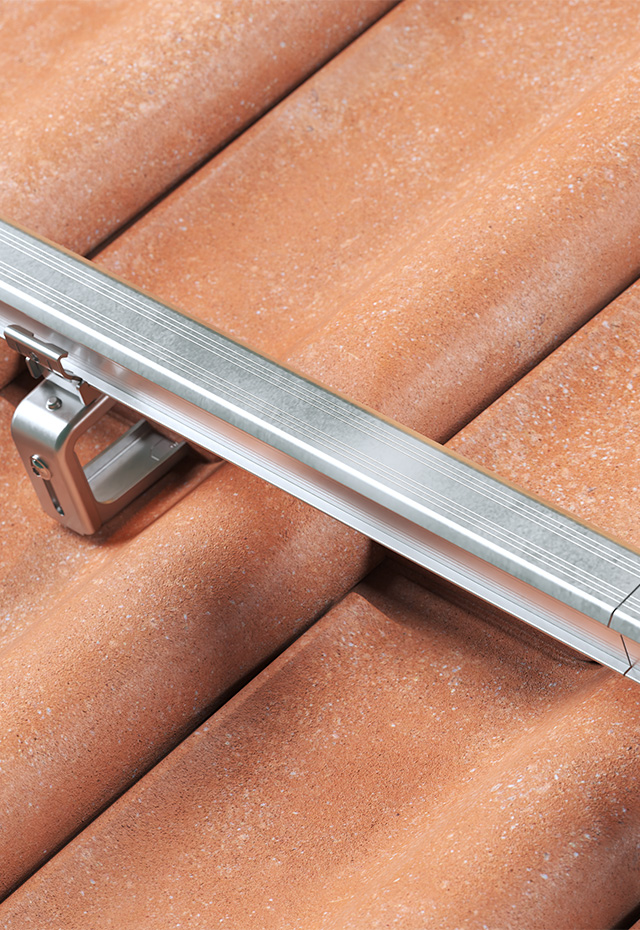

The ClickFit Evo mounting system for pitched roofs consists of just 4 base components. This makes installation extra easy.
System variations
Compatible with existing and new roofs, streamlined and often tailored for the agricultural sector. Watertightness and even load distribution are ensured and roof irregularities are compensated up to 10 degrees.
- Only 4 components needed, 1 tool approach

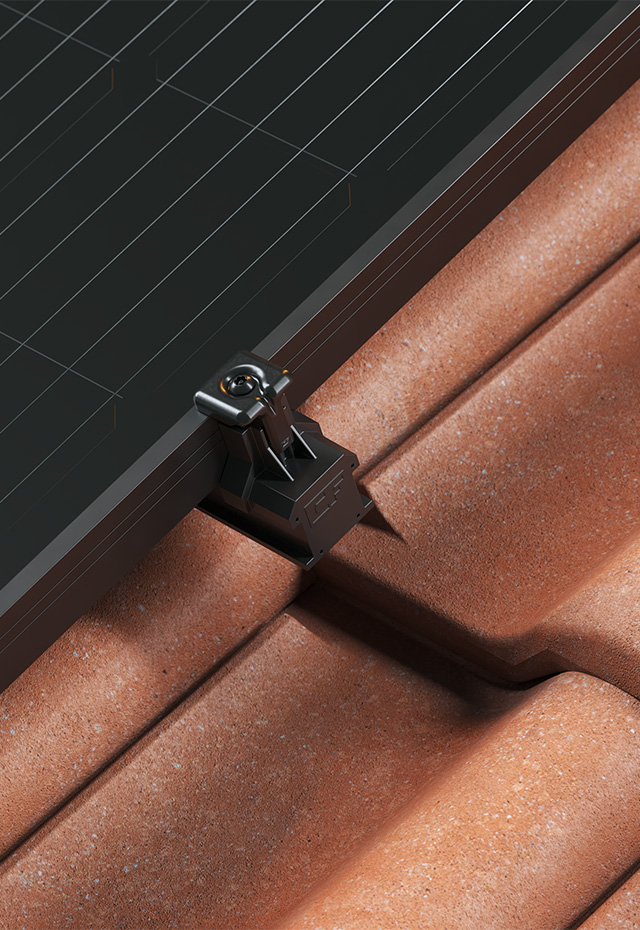

- Additional end cap for an aesthetically pleasing finish
- Adjustable in height due to unique design

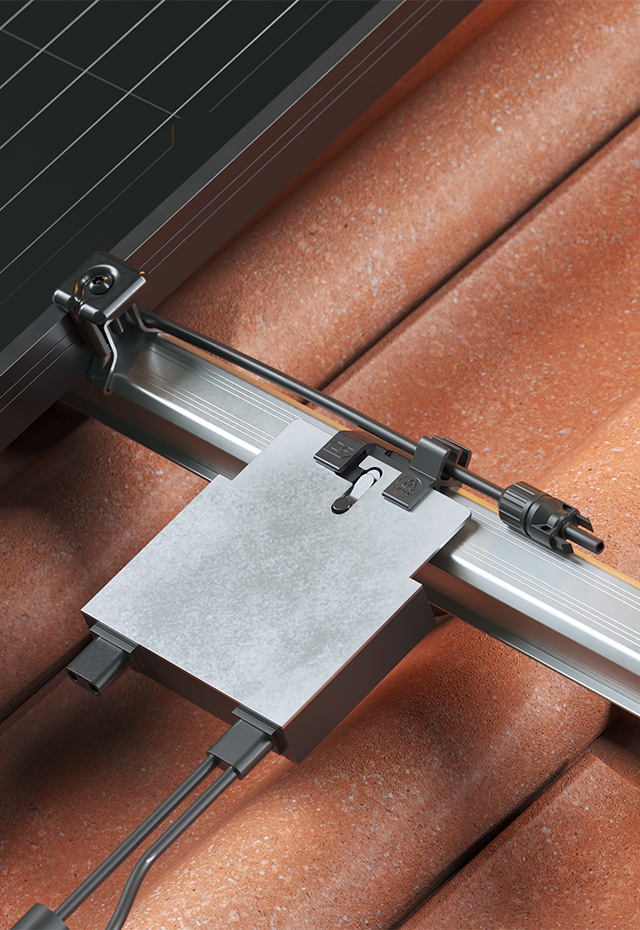

- Integrated cable management
- MCS certified
This straightforward system consists of just four components and can be installed on both existing and new roofs. The preassembled hanger bolt and the unique universal properties of this system let you install solar panels quickly and easily on pitched roofs.
- Suitable for multiple pitched rooftops
- Only 4 components, 1 tool approach

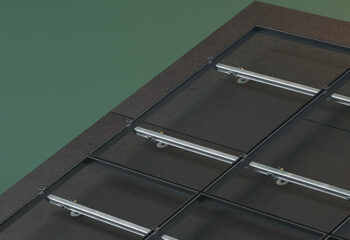

- Can be installed on EPDM and Bitumen Roof membrane
- Landscape & portrait placement
- Compensates for roof irregularities up to 10 degrees

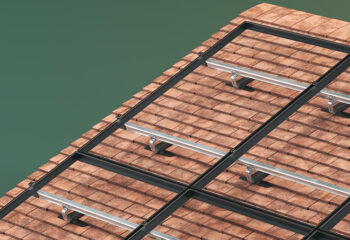

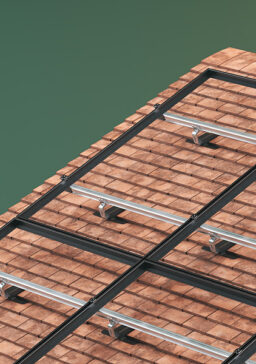

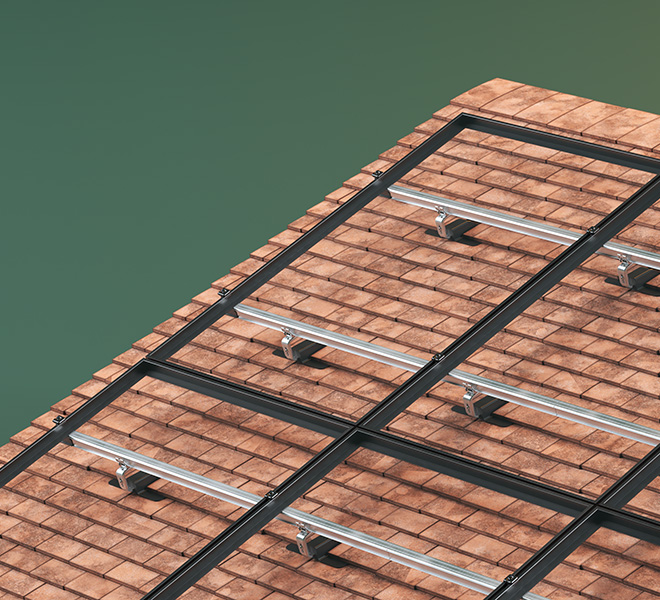

Installing solar panels just got smarter with ClickFit Evo® for Rosemary tiled roofs. With only 4 base components and a single tool, you’re in for a quick, easy, and safe installation. One system, endless possibilities: ClickFit Evo fits all common pitched roofs using the same base components. For you, this means working more efficiently, with less fuss.

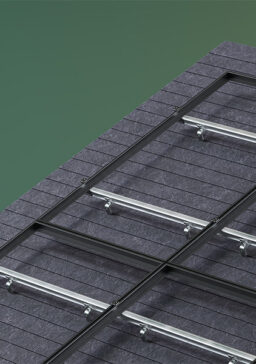

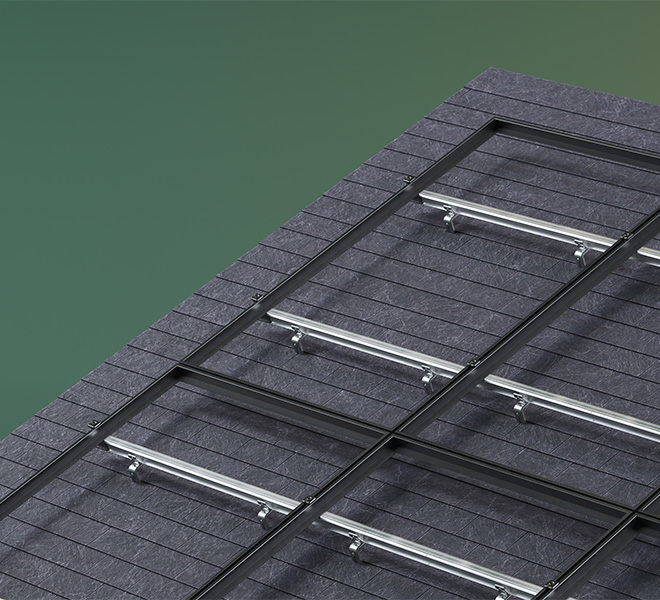

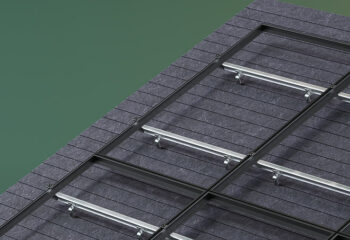

Installing solar panels just got smarter with ClickFit Evo® for slate roofs. With only 4 base components and a single tool, you’re in for a quick, easy, and safe installation. One system, endless possibilities: ClickFit Evo fits all common pitched roofs using the same base components. For you, this means working more efficiently, with less fuss.

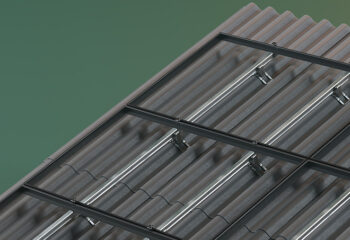

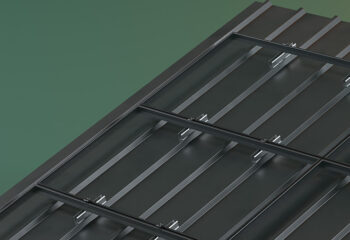

Smart mounting solution for all types of steel roofs. The profiles feature pre-punched holes and pre-applied EPDM rubber seals and are mounted directly onto the roof using self-tapping screws. The Hanger Bolt easily compensates for roof irregularities of up to 10 degrees.
- No pre-drilling required
- Pre-taped EPDM rubbers
- Additional end cap for an aesthetically pleasing finish
- Choice of high/low profiles or the hanger bolt
- For landscape and portrait orientation

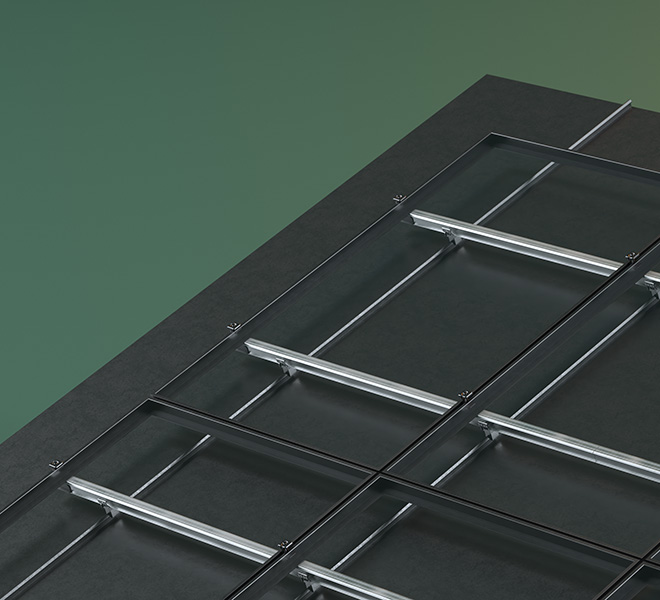

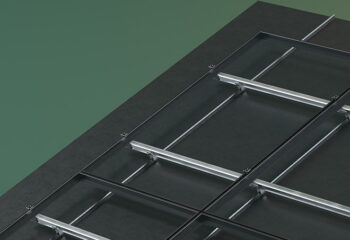

ClickFit Evo for standing seam roofs is suitable for single- or double folded, snap and rounded seams thanks to three types of clamps. The pre-assembled with a self-aligning click connection allow quick and easy installation of the mounting rail.
System components
Specifications & downloads
| Roof pitch | 10-60º |
|---|---|
| Short side clamping | ✓ |
| Long side clamping | ✓ |
| Portrait set-up | ✓ |
| Landscape set-up | ✓ |
| Max panel surface area | 3,92 m2 |
| Integrated cable management | ✓ |
| Max length of continuous rail | 15m |
| Mounting method of the hook | Clamping |
| Max tile overlap | 140mm |
| Material | Magnelis® steel |
| Roof pitch | 10-60º |
|---|---|
| Short side clamping | ✓ |
| Long side clamping | ✓ |
| Portrait set-up | ✓ |
| Landscape set-up | ✓ |
| Max panel surface area | 3,92 m2 |
| Integrated cable management | ✓ |
| Max length of continuous rail | 15m |
| Mounting method of the hook | Screwing |
| Max tile overlap | 140mm |
| Material | Magnelis® steel |
| Roof pitch | 10-60º |
|---|---|
| Short side clamping | – |
| Long side clamping | ✓ |
| Portrait set-up | ✓ |
| Landscape set-up | – |
| Max panel surface area | 2,6 m2 |
| Integrated cable management | ✓ |
| Max length of continuous rail | 15m |
| Mounting method of the hook | Screwing |
| Max tile overlap | 90mm |
| Material | Magnelis® steel & aluminium |
